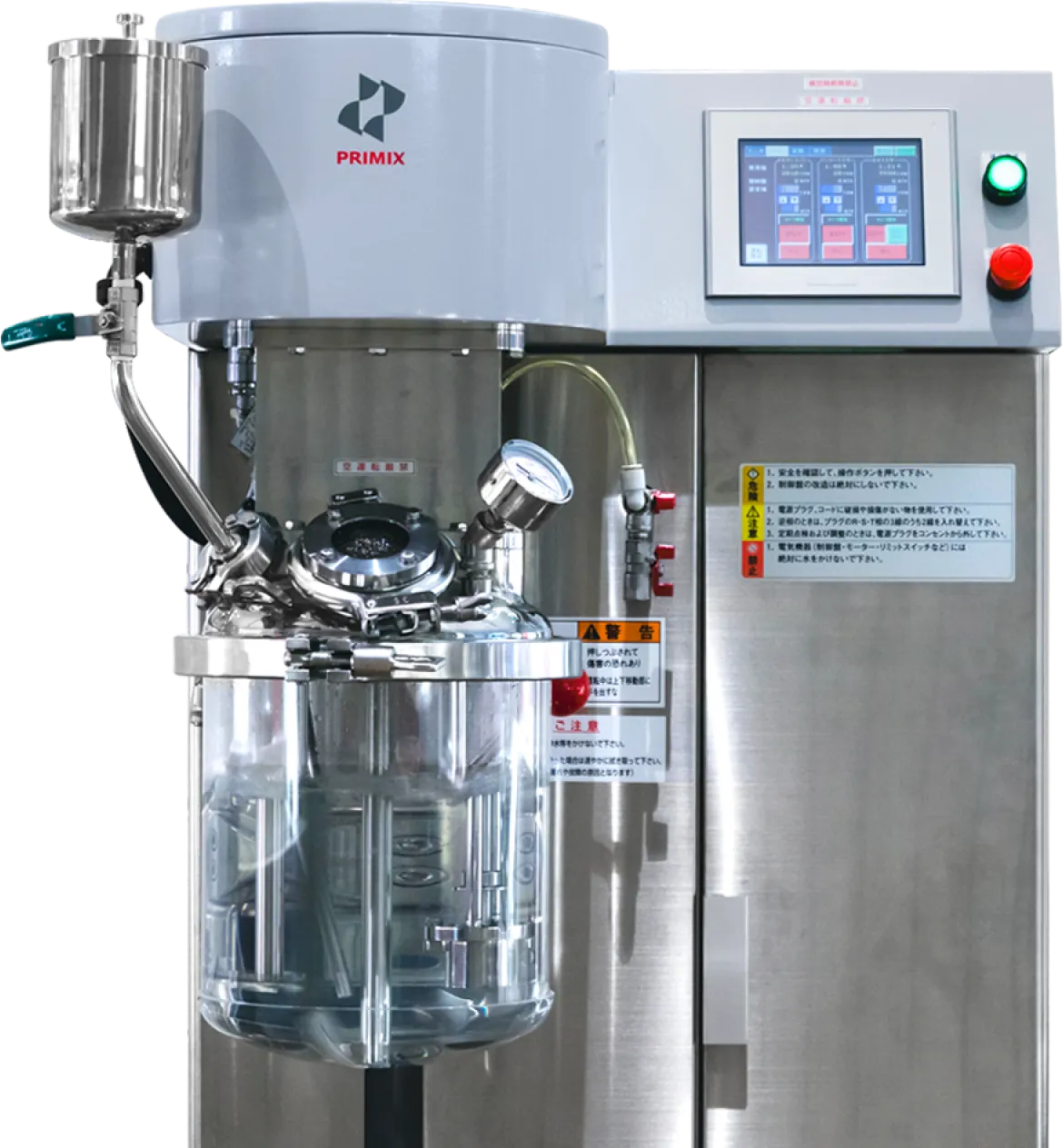

Small-Quantity Mixer / KneaderHIVIS MIX Model 2P-03, Model 2P-1
- Wide variety of uses from mixing low viscosity materials to kneading high-viscosity materials of 1,000 Pa·s (1,000,000cPs).
- The vessel can be sealed, allowing for mixing in a vacuum. An optional container with jacket makes available quick heating or cooling.
- Contains two twisted blades that move simultaneously on their own axis while orbiting the vessel in a planetary motion to reduce "dead space" and promoting uniformed processing.
- Data for conversion to mass-production can be collected.
Standard Specifications
| Motor | 100V, 0.24kW |
|---|---|
| Mixing Head | Orbital revolutions : 10 - 100r/min Own axis rotation : 24 - 243r/min |
| Working Capacity | 2P-03 : 0.3L 2P-1 : 1L |
